Steel tile machine glazed tile roll forming machine for colored roofing tile production
1. Brief introduction of our machine
1. Low cost, light weight but high strength, short building period, and re-cycle use
2. Save material , no waste.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 100 USD/day, and provide accommodation, food and the round-trip ticket fee.
2. Specifications of the roll forming production line
| Main Forming machine | Forming steps | 15 steps |
| Shaft diameter | 75mm |
| Machine stand | Connecting Plate |
| Machine frame | 350H Steel Welded |
| roller material | 45# steel |
| shaft material | 45# steel with quenching and tempering |
| Work speed | standard: 3-5m/min |
| Transport | By chains |
| Power of main machine | 4kw |
| Voltage | 380V, 50Hz, 3Phase |
| Machine dimension | 6500*1600*1500mm |
| Machine weight | About 3600kgs |
| Machine color | Yellow or blue |
| Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. |
3. The trade terms about the machine
1). Minimum order quantity (MOQ): 1 piece
2). Delivery time: about 45 workdays
3). Port of loading: port of XINGANG
4). Type of payment: by T/T or by L/C
5). Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
4. Our company profile
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD.(hereinafter referred to as SHITONG) is founded in 2005 and specialized in designing, manufacturing, installation, debugging kinds of Metal Panel Roll Forming Machines. SHITONG is a private enterprise with many years’ experience in this field. We have developed many new style Profile Forming Equipment, which enriches our products, makes our machinery more reasonable, artistic and practical. Therefore, we obtain the consistently high praise of new and regular customers.

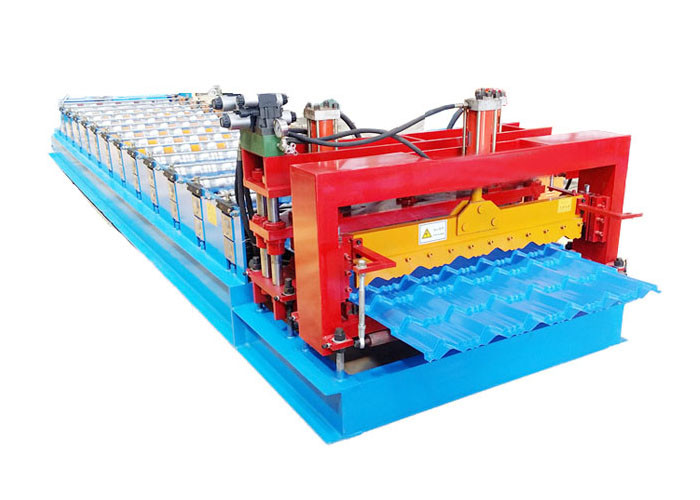

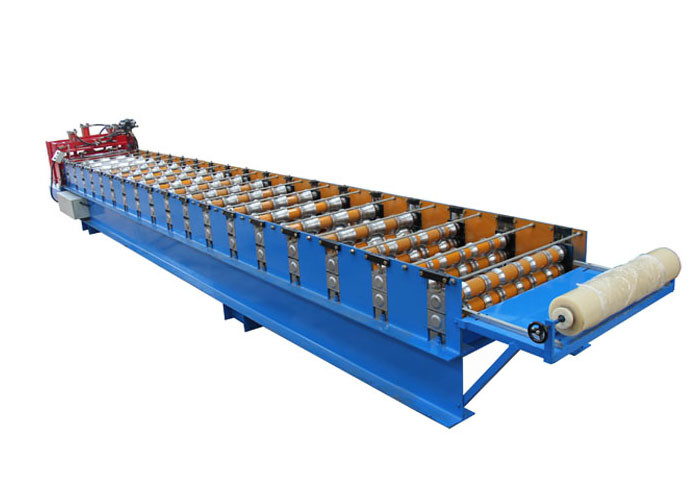

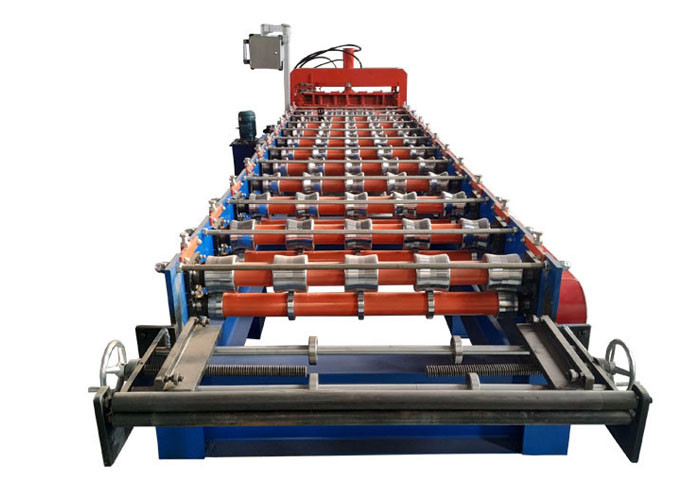

5. Some machine pictures for your reference
6. FAQ
1. If our country's voltage is different from yours, how to solve that?
The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
2. How to visit our company :
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.
3. What can you do if the machine broken?
Our machine's warranty period is 1 year,
if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
Product Tags:
|
|
Easy Operation Steel Tile Forming Machine , Roof Tile Forming Machine Material Width 1250mm Images
|
